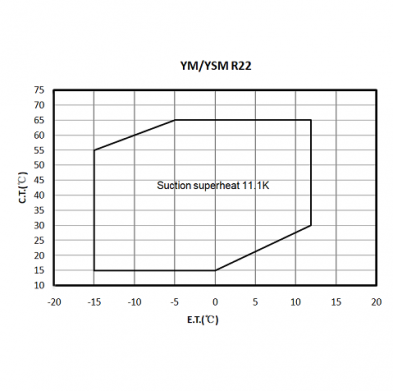

| Mid Temperature Refrigeration(R22) | ||||||||||
| Model |
Horse Power(HP) | Power |
Displ. (cc/rev) |
Heating Cap.(W) |
Input Power(W) |
Heating COP |
Running Current(A) |
MOC (A) | Oil | Refrigerant |
| YM34A2G-102 | 2 | 220V/1~/50Hz | 33.3 | 3600 | 1820 | 1.98 | 8.6 | 15.2 | 3GS | R22 |
| YM49A2G-102 | 3 | 220V/1~/50Hz | 46.6 | 4900 | 2367 | 2.07 | 11.2 | 18.0 | 3GS | R22 |
| YM70A2G-100 | 4 | 220V/1~/50Hz | 67.8 | 7000 | 3180 | 2.21 | 15.1 | 26.5 | 3GS | R22 |
| YM34A1G-100 | 2 | 380-420V/3~/50Hz or 460V/3~/60Hz | 33.3 | 3600 | 1800 | 2.00 | 3.2 | 4.9 | 3GS | R22 |
| YM49A1G-100 | 3 | 380-420V/3~/50Hz or 460V/3~/60Hz | 46.6 | 4900 | 2250 | 2.18 | 4.9 | 6.5 | 3GS | R22 |
| YM70A1G-100 | 4 | 380-420V/3~/50Hz or 460V/3~/60Hz | 67.8 | 7000 | 3120 | 2.25 | 6.4 | 9.2 | 3GS | R22 |
| YM86A1G-100 | 5 | 380-420V/3~/50Hz or 460V/3~/60Hz | 83.3 | 8600 | 3740 | 2.30 | 7.6 | 11.5 | 3GS | R22 |
| YM102A1G-100 | 6 | 380-420V/3~/50Hz or 460V/3~/60Hz | 98.3 | 10200 | 4430 | 2.30 | 8.5 | 13.5 | 3GS | R22 |
| YM115A1G-100 | 7 | 380-420V/3~/50Hz or 460V/3~/60Hz | 108.0 | 11800 | 5050 | 2.34 | 9.6 | 16.1 | 3GS | R22 |
| YM132A1G-100 | 8 | 380-420V/3~/50Hz or 460V/3~/60Hz | 123.0 | 13200 | 5690 | 2.32 | 11.2 | 17.4 | 3GS | R22 |
| YM158A1G-100 | 9 | 380-420V/3~/50Hz or 460V/3~/60Hz | 145.4 | 16219 | 6991 | 2.32 | 12.7 | 19.8 | 3GS | R22 |
| YM182A1G-100 | 10 | 380-420V/3~/50Hz or 460V/3~/60Hz | 167.2 | 18200 | 7745 | 2.35 | 13.6 | 22.3 | 3GS | R22 |
| YM200A1G-100 | 12 | 380-420V/3~/50Hz or 460V/3~/60Hz | 189.1 | 20000 | 8510 | 2.35 | 14.9 | 25.0 | 3GS | R22 |
| YM210A1G-100 | 13 | 380-420V/3~/50Hz or 460V/3~/60Hz | 197.1 | 21000 | 8860 | 2.37 | 15.7 | 26.0 | 3GS | R22 |
| YSM235A1G-100 | 13 | 380-420V/3~/50Hz | 216.7 | 23500 | 10450 | 2.25 | 19.1 | 27.4 | 3GS | R22 |
| YSM260A1G-100 | 15 | 380-420V/3~/50Hz | 244.3 | 26000 | 11560 | 2.25 | 20.7 | 31.3 | 3GS | R22 |

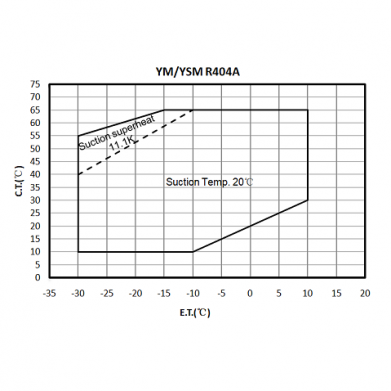

| Mid Temperature Refrigeration(R404A) | ||||||||||
| Model |
Horse Power(HP) | Power |
Displ. (cc/rev) |
Heating Cap.(W) |
Input Power(W) |
Heating COP |
Running Current(A) |
MOC (A) | Oil | Refrigerant |
| YM34E2G-102 | 2 | 220V/1~/50Hz | 33.3 | 3560 | 2070 | 1.72 | 9.4 | 16.2 | POE | R404A |
| YM49E2G-102 | 3 | 220V/1~/50Hz | 46.6 | 4840 | 2689 | 1.80 | 12.7 | 19.0 | POE | R404A |
| YM70E2G-100 | 4 | 220V/1~/50Hz | 67.8 | 6920 | 3601 | 1.92 | 16.9 | 28.1 | POE | R404A |
| YM34E1G-100 | 2 | 380-420V/3~/50Hz or 460V/3~/60Hz | 33.3 | 3560 | 2034 | 1.75 | 3.5 | 5.2 | POE | R404A |
| YM49E1G-100 | 3 | 380-420V/3~/50Hz or 460V/3~/60Hz | 46.6 | 4840 | 2547 | 1.90 | 5.1 | 6.9 | POE | R404A |
| YM70E1G-100 | 4 | 380-420V/3~/50Hz or 460V/3~/60Hz | 67.8 | 6920 | 3530 | 1.96 | 7.0 | 10.3 | POE | R404A |
| YM86E1G-100 | 5 | 380-420V/3~/50Hz or 460V/3~/60Hz | 83.3 | 8500 | 4250 | 2.00 | 8.0 | 12.2 | POE | R404A |
| YM102E1G-100 | 6 | 380-420V/3~/50Hz or 460V/3~/60Hz | 98.3 | 10100 | 5050 | 2.00 | 9.4 | 14.3 | POE | R404A |
| YM115E1G-100 | 7 | 380-420V/3~/50Hz or 460V/3~/60Hz | 108.0 | 11328 | 5600 | 2.02 | 11.2 | 17.1 | POE | R404A |
| YM132E1G-100 | 8 | 380-420V/3~/50Hz or 460V/3~/60Hz | 123.0 | 12893 | 6447 | 2.00 | 12.1 | 18.4 | POE | R404A |
| YM158E1G-100 | 9 | 380-420V/3~/50Hz or 460V/3~/60Hz | 145.4 | 15842 | 7921 | 2.00 | 13.6 | 21.0 | POE | R404A |
| YM182E1G-100 | 10 | 380-420V/3~/50Hz or 460V/3~/60Hz | 167.2 | 17856 | 8928 | 2.00 | 15.5 | 23.6 | POE | R404A |
| YM200E1G-100 | 12 | 380-420V/3~/50Hz or 460V/3~/60Hz | 189.1 | 19536 | 9671 | 2.02 | 16.3 | 26.5 | POE | R404A |
| YM210E1G-100 | 13 | 380-420V/3~/50Hz or 460V/3~/60Hz | 197.1 | 20544 | 10170 | 2.02 | 16.9 | 27.6 | POE | R404A |
| YSM235E1G-100 | 13 | 380-420V/3~/50Hz | 216.7 | 23218 | 11900 | 1.95 | 21.5 | 28.9 | POE | R404A |
| YSM260E1G-100 | 15 | 380-420V/3~/50Hz | 244.3 | 25688 | 13150 | 1.95 | 23.0 | 32.8 | POE | R404A |
| YM350E1G-100 | 22 | 380-420V/3~/50Hz or 460V/3~/60Hz | 332.6 | 33300 | 16650 | 2.00 | 29.4 | 41.0 | POE | R404A |
| YM410E1G-100 | 25 | 380-420V/3~/50Hz or 460V/3~/60Hz | 392.0 | 39200 | 19400 | 2.02 | 34.5 | 51.0 | POE | R404A |
